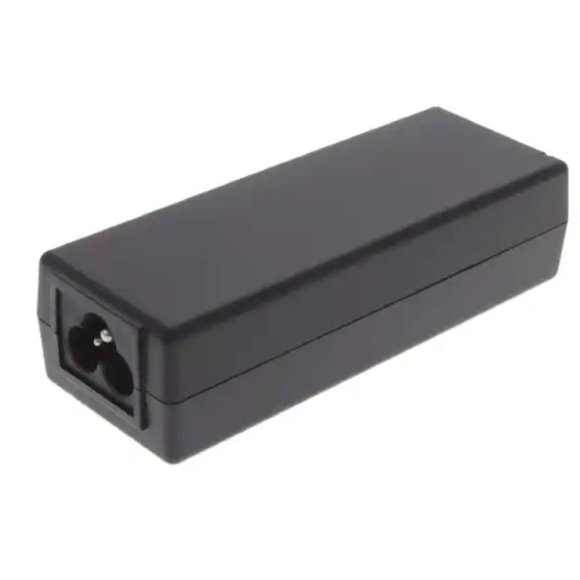

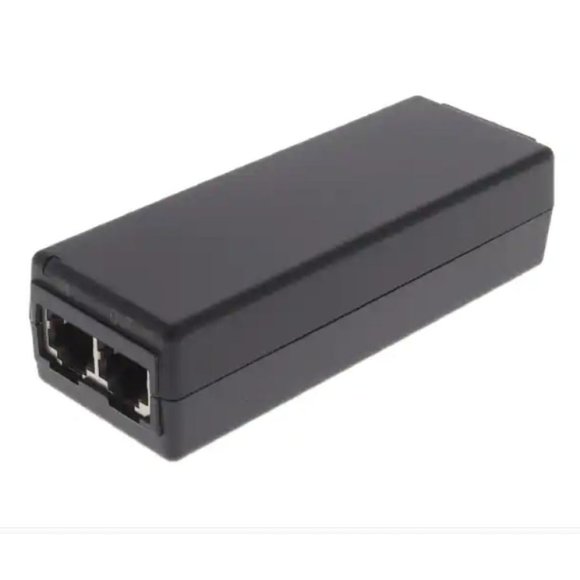

POE15M-1AFE-R Single Port PoE Injector, Power Supply; AC-DC; Desktop; 15.4W; 56V
Boutique
$23 $85
Size
Like and save for later
Add To Bundle
POE15M-1AFE-R Single Port PoE Injector, Power Supply; AC-DC; Desktop; 15.4W; 56V@0.275A; 100-240V in
Model: POE15M-1AFE
Brand: PHIHONG
P/N: 170732-001
P2146O1400B2
IEEE 802.3af Compliant PSE Gigabit Compatible
Input: 100 - 240V ~ 0.8A, 50 - 60 Hz
Output: 56V== 0.275A, 15.4W
Pin 3, 6 +56V
Pin 1, 2 - return
Features:
• Compliant with IEEE802.3af Standard
• Gigabit data rates
• Non-Vented Case
• Full Protection OCP, OVP
• Small case size
• Low Cost
• 1 Year Warranty
• DOE Level VI
• No Detection – passive injector
• Gigabit data rates
• Non-Vented Case
• Full Protection OCP, OVP
• Small case size
• 1 Year Warranty
• Low Cost
• IP Telephones
• Security Cameras
• Wireless Network Access Points
Applications:
• IP Telephones
• Security Cameras
• Wireless Network Access Points
Digi-Key Part Number
993-POE15M-1AFE-R-ND
Manufacturer
Phihong USA
Manufacturer Product Number
POE15M-1AFE-R
Description
IEEE802.3AF - POE DESKTOP C6 GIG
56V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate
Mounting Type: Desktop
Size / Dimension: 4.18" L x 1.56" W x 1.07" H (106.2mm x 39.5mm x 27.3mm)
Approval Agency: cULus, IEC
Standard Number: 60950-1
Input Connector: IEC 320-C6 (Power), RJ45 (Data)
Output Connector: RJ45 (Data, Power)
Base Product Number: POE15M
Type: Passive Injector
Voltage - Input: 90 ~ 264 VAC
Number of Ports: 1
Voltage - Output: 56V
Current - Output: 275 mA
Power (Watts) - Per Port: 15.4W
Compliance: IEEE802.3af
Features: OCP, OVP, SCP
Operating Temperature: -20°C ~ 50°
