PCT Intl PCT-VC-9U Bypass drop amplifier

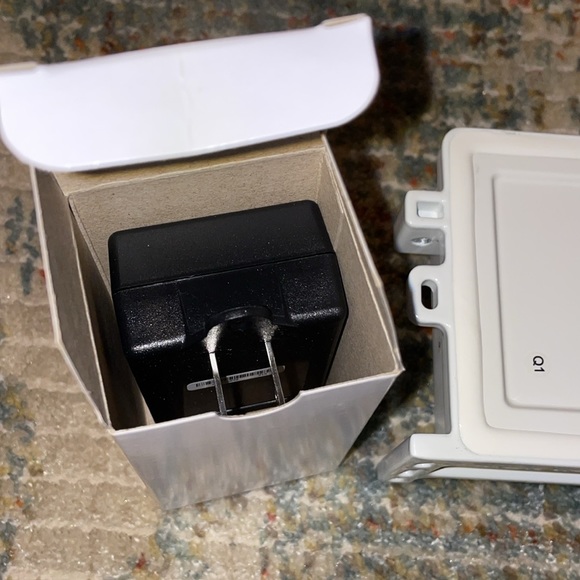

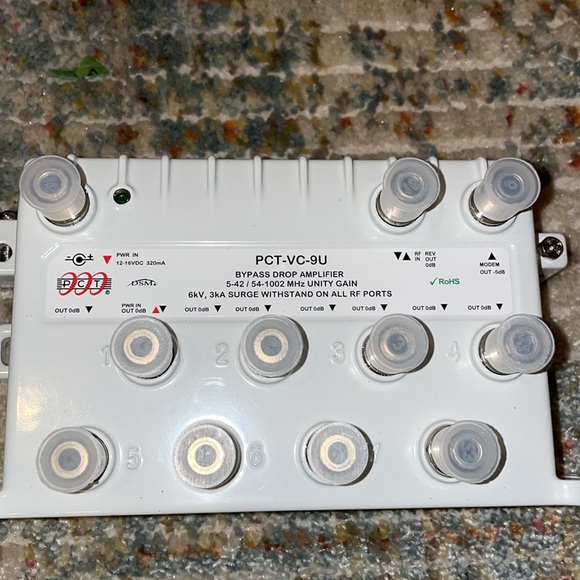

PCT Intl PCT-VC-9U Bypass drop amplifier PCT’s MoCA bypass drop amplifier is designed to provide the ability to use MoCA technology to communicate to all the amplifier output ports from the modem port, bypassing the amplifier itself. The built-in triplex filter constrains the MoCA signals to the home network while providing the necessary MoCA bypass connection around the amplifier to enable in-home networking between eMTA, set-top boxes and other devices (for example: gaming consoles, Features: Includes PCT's MPI-1G Power Inserter Patented design to increase spring retention for better surface contact, even after repeated entry, across maximum to minimum center conductor diameters Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching and less common path distortion Remote powering Benefits - Use of MoCA Wi-Fi extenders - Use of MoCA enabled IP set-top boxes - Eliminates need for separate MoCA POE filter - Keeps MoCA signals within the home network and blocks them from going up the drop - Reduces the loss of MoCA passband frequencies (1125 to 1525 MHz) within the in-home network Unity Gain – Upstream and Downstream: Compensates for splitter loss 0 dB gain maintains optimal QAM levels for better SNR Passive Bypass Port: Supports critical applications Ensures high reliability Eliminates loss of service due to power outages
