Module One and Module Two Logic Circuit Demonstration Boards

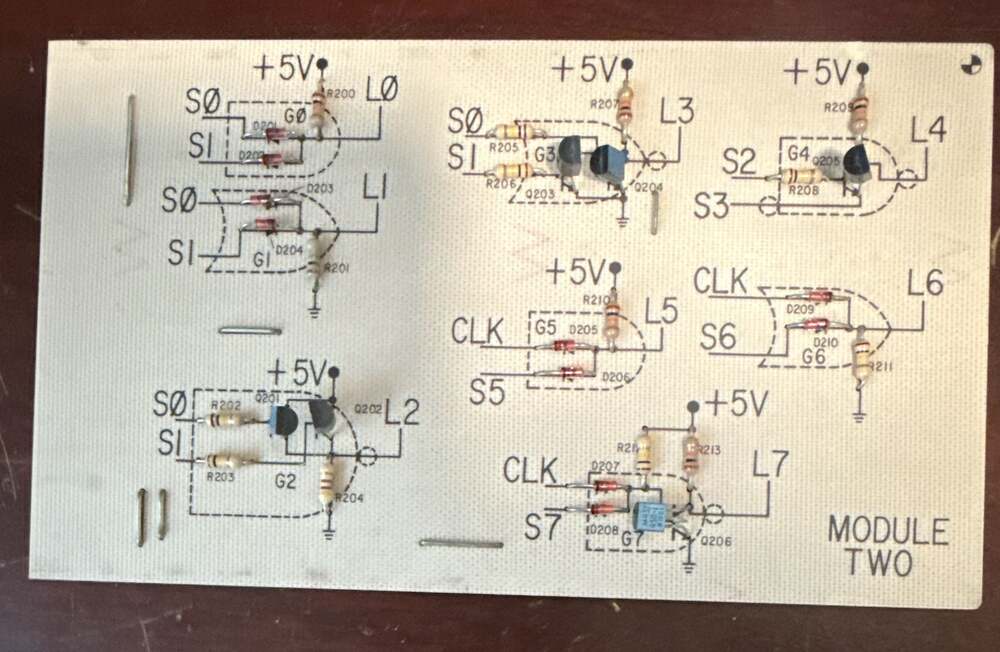

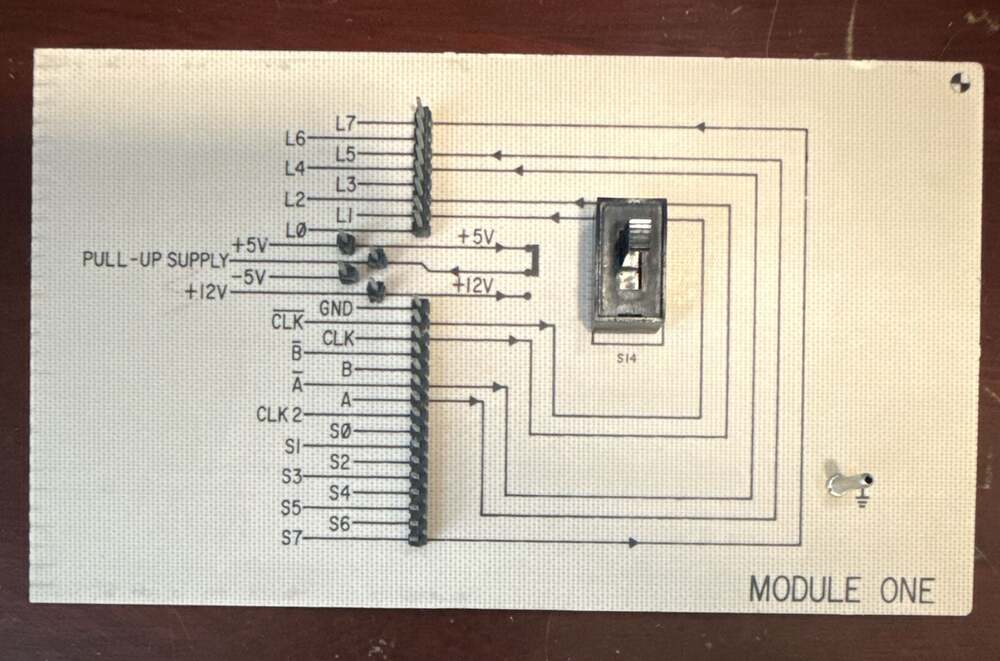

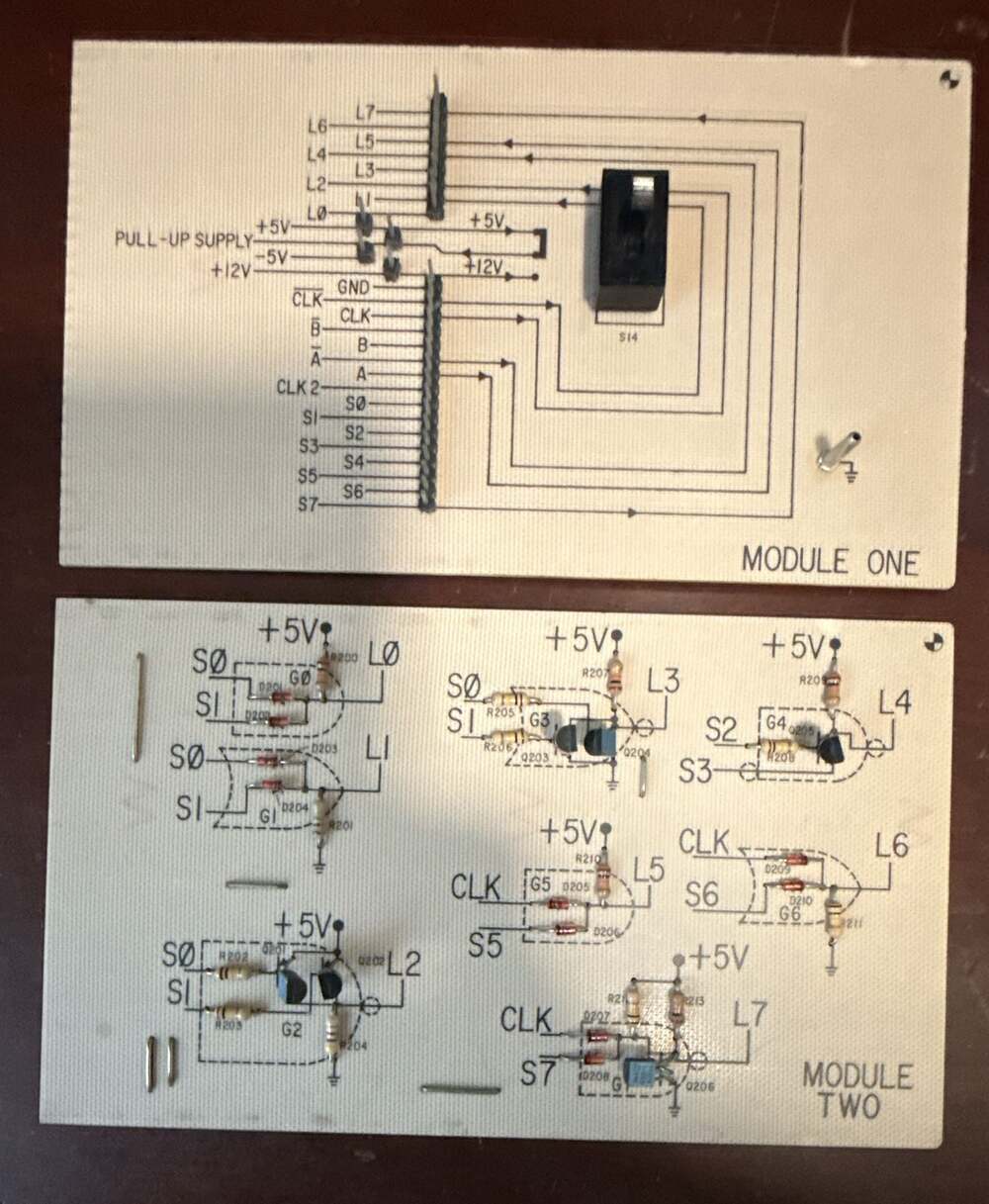

Two-piece logic circuit demonstration board set. Module One has switch S14, pin headers for L0-L7, CLK, A, B, and S0-S7. Module Two has discrete logic gate circuits G0-G7 with resistors, diodes, and transistors. Schematic diagrams printed directly on the board surfaces. Used for hands-on circuit and logic gate demonstrations. Both boards are gently used with minor handling wear from prior use. No missing components or damage noted. 4471 45
