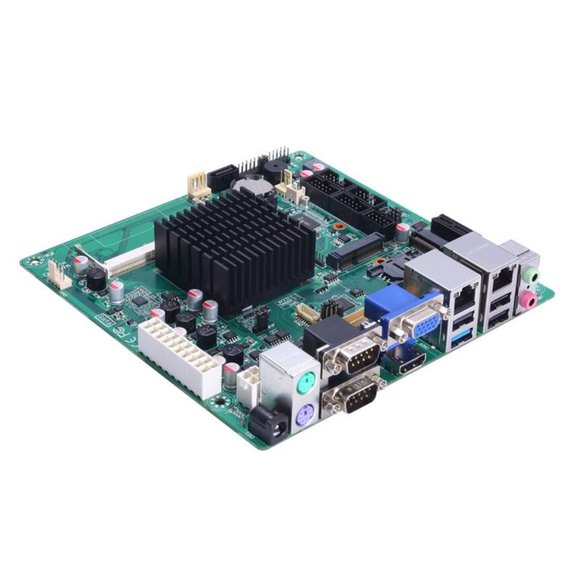

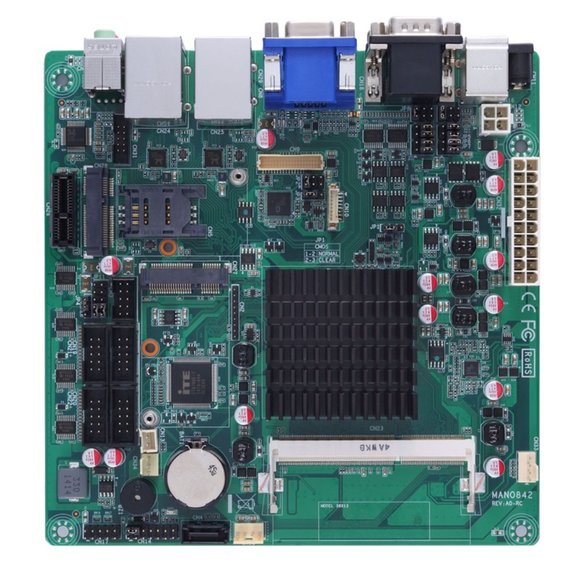

Mini ITX Motherboard Axiomtek MANO842 Celeron J1900 (Up to 2.42 GHz) CPU Tested

The MANO842 is a Mini-ITX board powered by the Intel Celeron J1900 (up to 2.42GHz) offering great performance in this compact standardized format. The system features memory by 1 x 204-pin SO-DIMM dual channel DDR3L-1333, up to 8GB, storage is via 1 x SATA-300 and 1 x mSATA and expansion is possible through 1 x PCIe and 1 x mPCIe. Communication is via 1 x SIM card slot and further I/O includes 6 x COM, 6 x USB 2 x LAN, 1 x VGA, 1 x HDMI, 1 x LVDS, Mic-in/Line-out and 8 channels of DIO. Main Features CPU: Intel® Celeron® processor J1900 up to 2.42 GHz Chipset: SoC integrated System Memory: 1 x 204-pin SO-DIMM dual channel DDR3L-1333, up to 8GB BIOS: AMI COM 2 x RS-232/422/485 4 x RS-232 USB 5 x USB 2.0 1 x USB 3.0 Ethernet: 2 x 10/100/1000 Mbps (Realtek RTL8111E) Display 1 x VGA 1 x HDMI 1 x LVDS Digital I/O: 8 channels programmable Audio: Mic-in/Line-out Storage 1 x SATA-300 1 x mSATA Expansion 1 x PCIe x1 1 x PCI Express Mini Card 1 x SIM card slot Others: 1 x PS/2 Keyboard & mouse Battery: Lithium 3 V/ 220 mAH Power Requirements: 12VDC or STD ATX Watchdog Timer: 255 level, 1 ~ 255 sec. Operating Temperature: 0ºC ~ +60ºC (+32ºF ~ +140ºF) Relative Humidity: 10% ~ 95% relative humidity, non-condensing Dimensions: 170 x 170 mm Board Thickness: 1.6 mm Certificate: CE
