LSI 9300-16i 12Gbps SAS-3 PCIe x8 HBA P16 IT mode ZFS TrueNAS UNRAID

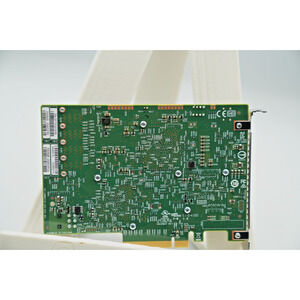

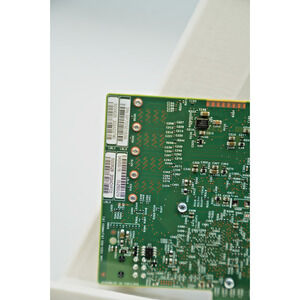

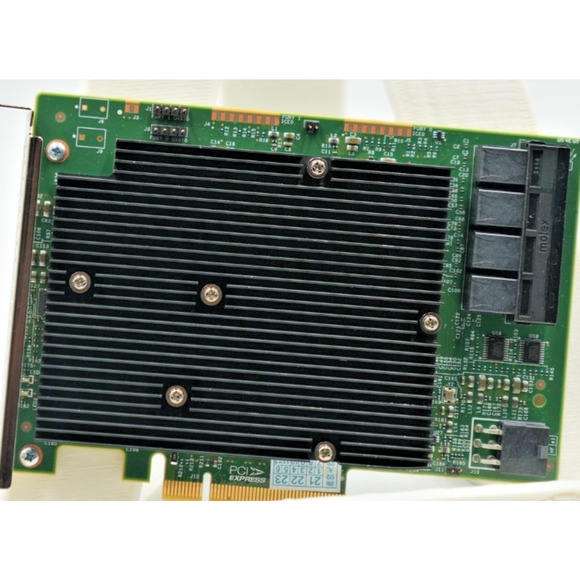

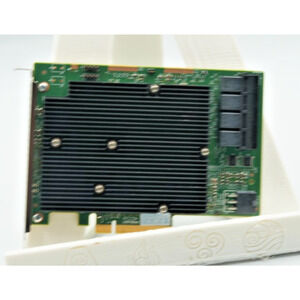

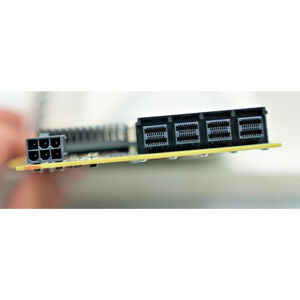

LSI SAS 9300-16i PCIe 3.0 12Gb/s HBA RAID Controller Card 03-25600-01B Tested Condition Used, pulled from working system. Professionally handled and stored. Clean board with no visible damage or missing components. Main Description This LSI Logic SAS 9300-16i Host Bus Adapter delivers high-performance 12Gb/s SAS connectivity over PCIe 3.0 for demanding storage setups. It supports up to 1024 devices and features 16 internal ports, ideal for data centers, NAS systems, or enterprise-grade servers. 1. LSI IT mode firmware version P16 (16.00.12.00) 2. MPTSAS3 BIOS ROM flashed version 08.37.00.00 3. MPTSAS3 UEFI ROM flashed version 18.00.00.00 4. Original SAS address preserved in flash 5. Original Board Tracer Number preserved in flash 6. Original Board Assembly preserved in flash 7. full profile form factor 8. PCIe 3.0 x8 This is based on a pair of LSI SAS3008 SAS controller chipset and support 12Gbps SAS-3 storage devices. It uses a PCI-E 3.0 connection with x8 lanes. The controller has 4 SFF-8643 connectors, each carrying 4x 12Gbps SAS lanes. You will need a compatible cable to connect these to your SAS or SATA drives. CAUTION Please note this card is a high performance card and runs hot. You must install it with plenty of airflow over its heatsink. Improper cooling can cause failure and poor reliability. IC Code: BGS-XXX
