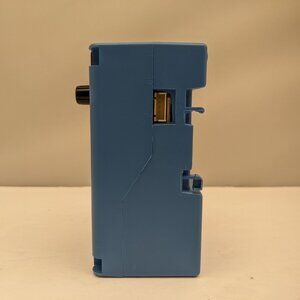

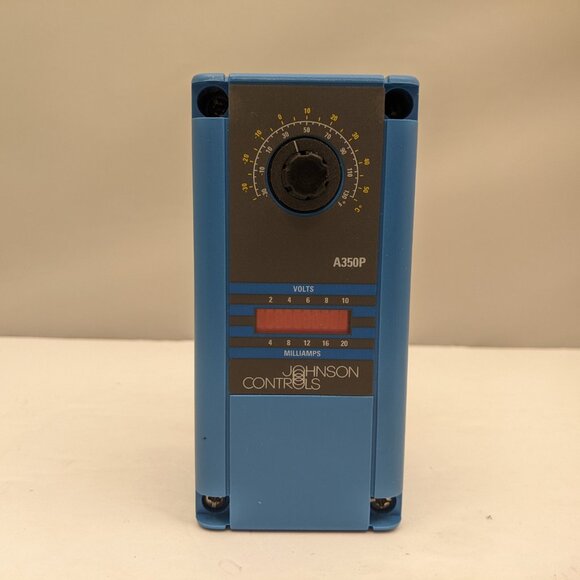

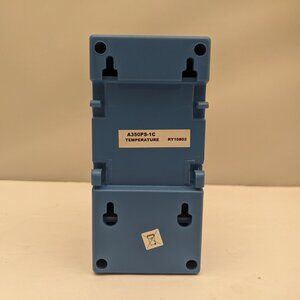

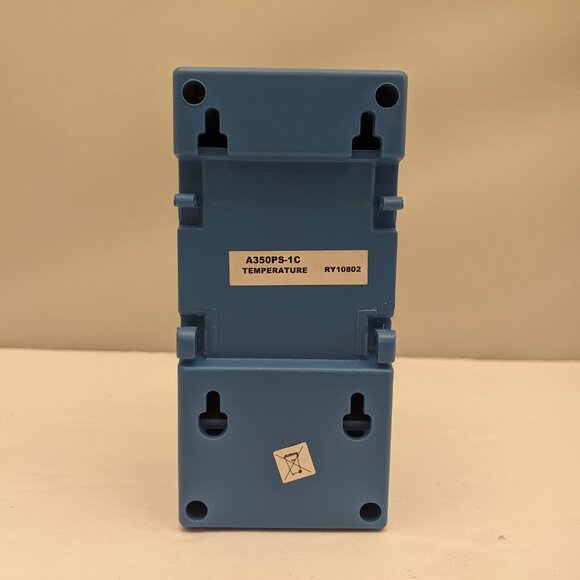

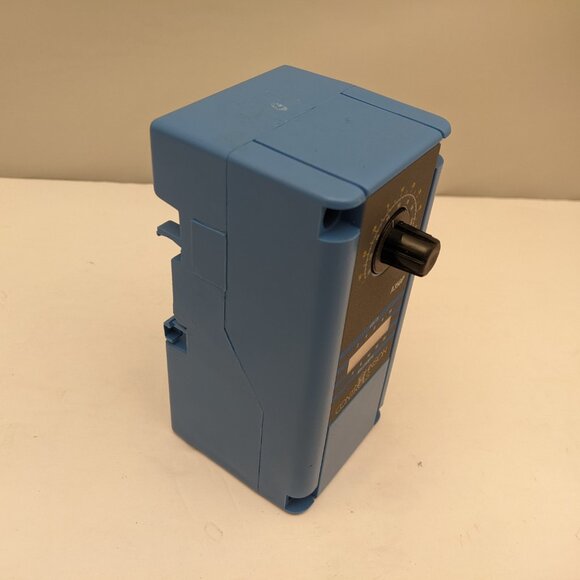

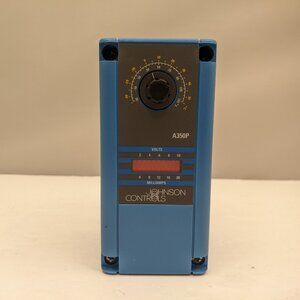

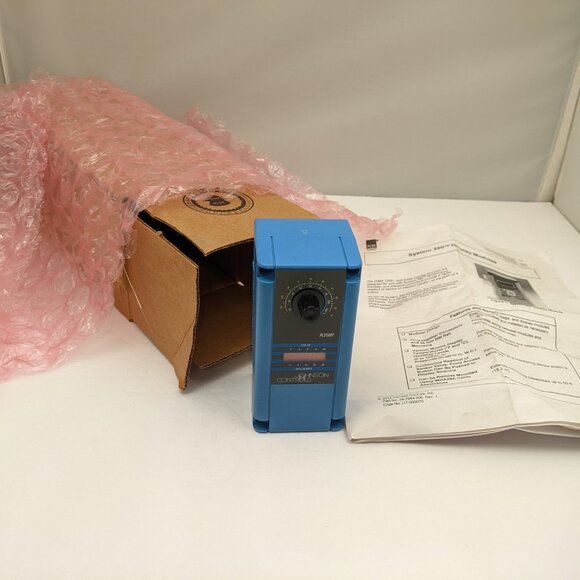

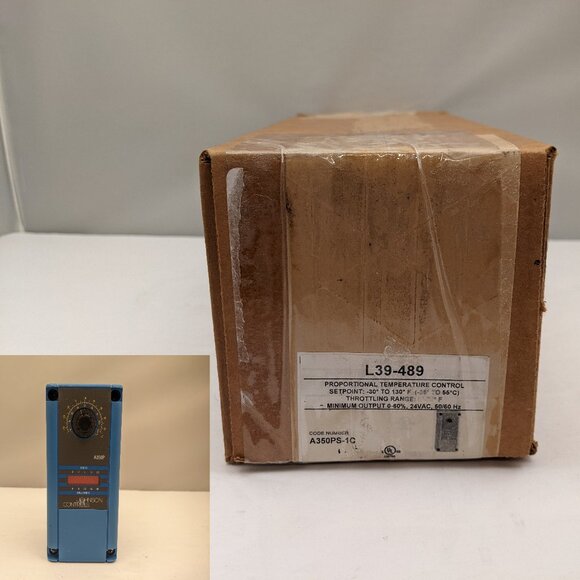

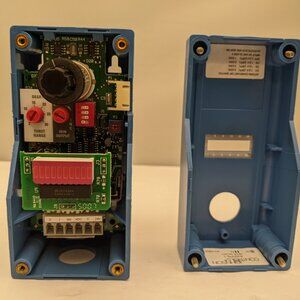

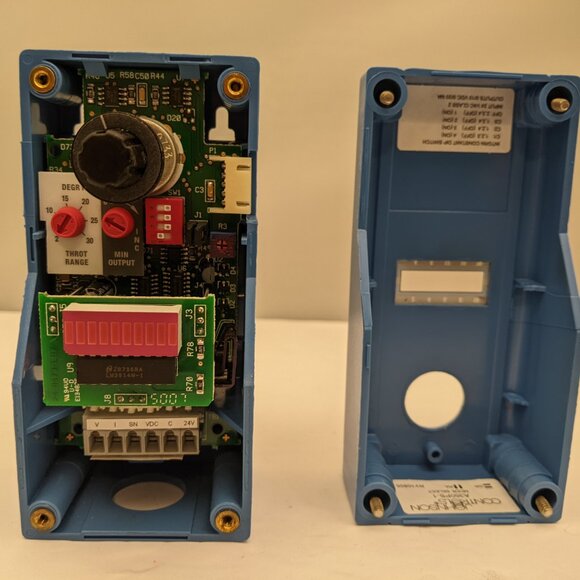

JOHNSON CONTROLS System 350 Display Module | A350PS-1C | NO SENSOR | OPEN BOX

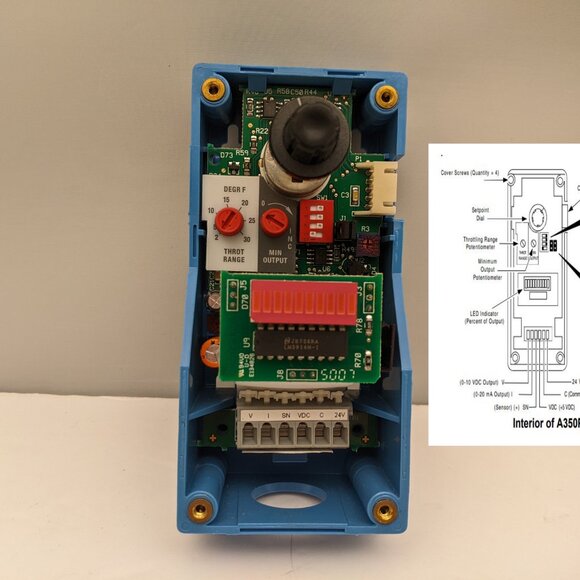

The A99BC-25C Temperature Sensor is ** MISSING ** From This Box The A99BC-25C is a PTC Silicon Sensor with High Temperature Silicon Cable : Cable length 9-3/4 in. | 0.25 m / Range: -40 ° F to 248° F | -40° C to 120° C A typical System 350 Temperature Control setup includes the following: A350P Temperature Control A99B Series Temperature Sensor Y350R Power Module [ Or 24 VAC Class 2 Transformer ] S350 Stage Modules D350 Digital Temperature Display Module Applications -> The A350P Temperature Control can be used as a standalone device or in conjunction with plug-together accessory modules. The addition of S350 Stage Modules allows for the control of multiple stage HVAC/R applications. Typical application for the A350P includes: Proportional Heating Control With Staged Direct Expansion Cooling Simple Temperature Control for Air Handling Units Modulating Damper Actuators For Mixed Air Control Simple Proportional Mixed Air Control The A350P control operates on 24 VAC/VDC and provides two simultaneous analog outputs: 0 to 10 VDC and 0 to 20 mA. A cover-mounted, 10-segment Light-Emitting Diode [ LED ] bar graph indicates percentage of output Operational Features Include: Adjustable Setpoint Adjustable Minimum output Adjustable Throttling Range [ Proportional Band ] Selectable Integration Time Constant Selectable Reverse Acting [ RA ] or Direct Acting [ DA ] Mode of Operation E5293
